SINOTRUK CO. INTERNACIONAL, LTD.
Soporte y Ventas:
 |
| Lugar de origen: | Porcelana |
| Nombre de la marca: | SINOTRUK HOWO |
| Certificación: | ISO/3C/BV/IFA/SGS |
| Número de modelo: | ZZ3317N386GB1 |
| Cantidad de orden mínima: | 1 unidad |
|---|---|
| Precio: | USD48000-USD52000/UNIT)negotiation |
| Detalles de empaquetado: | Desnudo o depilación con cera en roro o buque a granel |
| Tiempo de entrega: | 25 días hábiles después de recibir su pago anticipado |
| Condiciones de pago: | LC, T/T, Unión Occidental |
| Capacidad de la fuente: | 3,000 units por mes |
| Nombre del producto: | Camión volcado | Modelo: | ZZ3317N386GB1 |
|---|---|---|---|
| Tipo de unidad: | LHD 8x4 | Estándar de emisión: | 2 euros |
| Motor: | WP12s.400E201 (Euro ii) | Cuerpo de carga: | 7800 × 2300 × 1500 (mm), abajo: 8 mm, lado: 6 mm |
| Capacidad de carga: | 40-50tones | ||
| Resaltar: | 400HP 8X4 tipper dump truck,front lifting dump truck construction,customizable tipper dump truck |
||

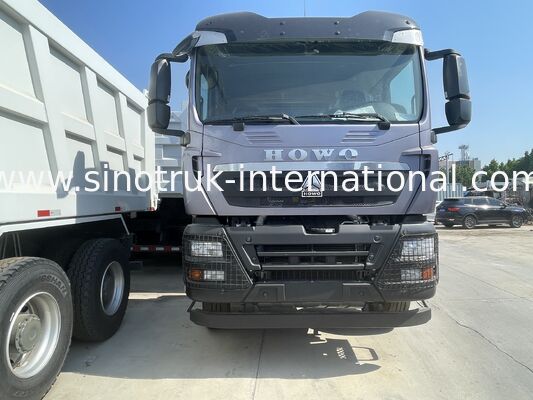

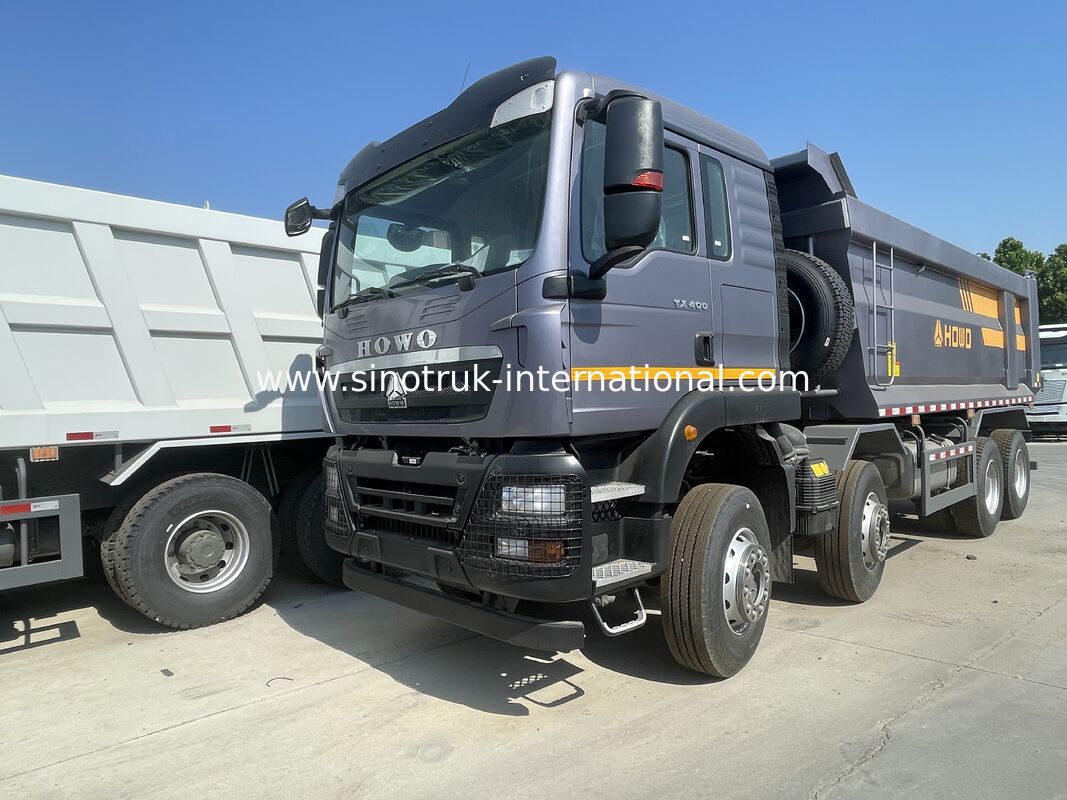

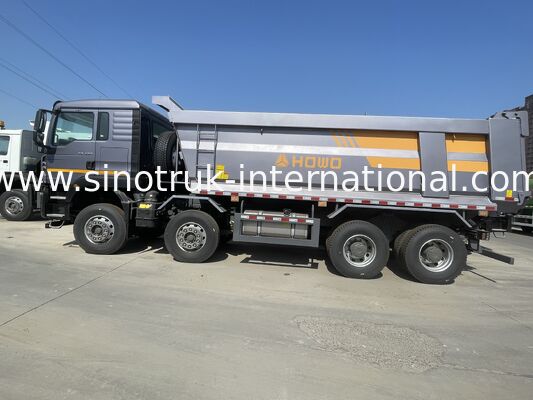

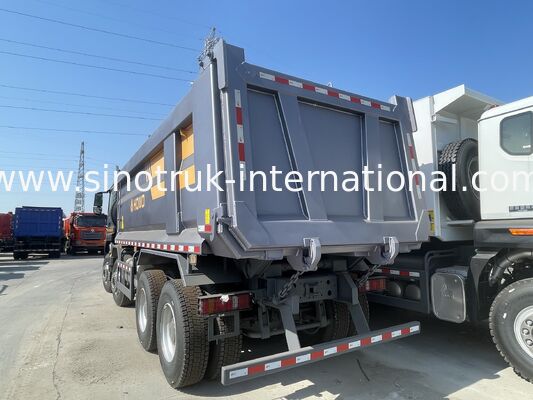

SINOTRUK TX Model 400HP 8X4 Tipper Dump Truck Construction Front Lifting Customer customization
Description:
The product has reliable structure and high bearing capacity
Load 30-60 tons, power 266HP-420HP, reliable performance, wide range of application.
This model can meet the requirements of severe environment like construction site and
mining area.which can fullfiled you of short distance transportation of mining rock and
soil as well as engineering construction.
Specifications:
|
||||
| Model | ZZ3317V386GB1 | |||
| Drive Type | 8X4 | |||
| Engine |
|
|||
| Cabin | TX-F(with one sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 2×VGD95 ( 9.5 Tons) | |||
| Driving Axle | HC16, 16Tons | |||
| Steering | BOSCH hydraulic steering with power assistance. | |||
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance | |||
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
| Wheel base | 3800+1350(mm) | |||
| Overall dimension | 10910×2496×3490(mm) | |||
| Cargo body | 7800×2300×1500(mm),Bottom:8mm, Side:6mm | |||
| The curb weight | 15300(Kg) | |||
| Gross weight | 31000(Kg) | |||
| Max. speed | 75km/h | |||
| Color | White, red, green, golden and so on. |
|||
Applications:
Which is used in Mining industry, Construction business, docks, for transporting soil, sand, stones and so on.
Competitive Advantage:
1) Various types of trucks to meet your needs
2) The world's top technology products are adopted for key components
3) Based on strong technical support and top technology, make the truck higher quality and more reliable
4) Optimized cargo structure, light weight, high rigidity, large load capacity
5) Adopt high strength steel, long service life
6) The optimized sealing structure has better sealing effect.
7) Intelligent hydraulic control system, avoid misoperation, with higher safety and operation efficiency.
8) A variety of box structure and equipment selection
9) Low fuel consumption
10) The engine is strong enough
11) Competitive price, cost-effective
12) Fast and efficient spare parts supply, bring you more convenience
13) Fast delivery time, we can accurately and quickly arrange production according to your needs
14) Professional import and export transaction procedures make customs clearance more efficient
Persona de Contacto: Mr. Aaron White
Teléfono: +86-13210598479
Fax: 86-531-85865823
